Heat Transfer Systems

Delivering Your Low Carbon Energy Future

Through our specialty equipment, process technology, cryogenic know-how and technology solutions, Chart is at the forefront of delivering a lower carbon energy future.

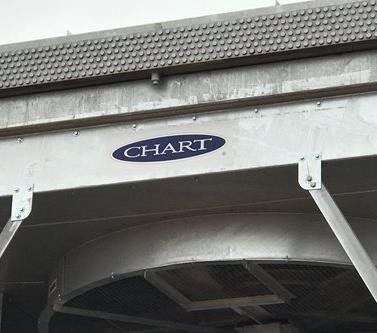

Air Cooled Heat Exchangers

Through the Hudson Products, Air-X-Changers and Smithco brands, Chart has brought together trusted leaders to provide air cooled heat exchanger solutions that maximize cooling performance and energy efficiency and minimize plot plan.

Axial Fans - Tuf-Lite

Tuf-Lite fans provide the highest levels of performance and efficiency in air-cooled heat exchangers, cooling towers, and air-cooled steam condensers.

Brazed Aluminum Heat Exchangers

Chart’s Brazed Aluminum Heat Exchangers (also known as Plate Fin Heat Exchangers) and Cold Boxes are at the heart of cryogenic separation, liquefaction and purification processes for air gases, natural gas, hydrogen, helium and petrochemicals.

Hairpin Heat Exchangers

Hairpin heat exchangers use true counter-current flow. Unlike multi-pass shell and tube designs where correction factors are used to account for inefficiencies resulting from co-current passes, this process maximizes temperature differences between shell- and tube-side fluids.

Helium Liquefiers

Helium liquefaction capacities from 50 to 600 million standard cubic feet per year (mmscfy).

Hydrogen Liquefiers

Complete in-house engineered and manufactured hydrogen liquefaction plant equipment with capacities ranging from 5 to over 150 tons per day. Standard sizes at 5, 10, 15, 30 and 150 tons per day, with history of multiple built and operating plants.

LUMMUS ADVANCED BREECH-LOCK EXCHANGER®

LUMMUS ADVANCED BREECH-LOCK EXCHANGER® (LABLEX®) is typically used in hydrocracking, hydro-treating, gas compression, ammonia/urea synthesis, methanol and other high temperature and high pressure applications with rich hydrogen streams.

LNG Liquefaction Plants

Chart's modular liquefaction plants and associated process technology enable displacement of liquid fuels through small- and mid-scale LNG.

Nitrogen Rejection Units

Cryogenic nitrogen rejection offers the highest methane recovery rates. NRU solutions from 15MMSCFD to >900MMSCFD of feed gas. Inlet nitrogen concentrations from 1% to >70%.

Rotary Heat Exchangers

Howden gas gas heaters and air preheaters recover heat that would otherwise be wasted, playing a vital role increasing energy efficiency across a range of industrial processes.

Specialty Heat Transfer & Process Equipment

VRV and IMB provide a range of specialty heat transfer and pressure containing products for the upstream gas processing, refining, petrochemical and fertilizer industries. High pressures and temperatures, complex fabrication, critical welding and exotic metallurgy are specialisms.

SPINTUBE™ Replacement Bundles

Enhance the performance of TEMA type shell and tube heat exchangers by retro-fitting SPINTUBE™ replacement bundles. SPINTUBE provides increased thermal performance and reduced pressure drop.

Turboexpanders

2023 marks L.A. Turbine's (LAT) 20th anniversary designing, building and servicing LAT & non-OEM turboexpanders for hydrocarbon processing, petrochemicals, industrial gas and power generation & recovery applications.

Turboexpanders - Aftermarket Services

Cheers to providing >20 years of global turboexpander repair and service for LAT & non-LAT equipment. Learn how we use this experience to drive innovation & OEM products.
